The reference high bandwidth subwoofer
The active BW-2 is designed as a high bandwidth subwoofer with the objective of reproducing music and soundtracks with full dynamics and precision. The minimalistic – ‘form follows function’ design ensures that all resources are focused on the best possible sound reproduction.
The frequency range of the BW-2 goes up to 800 Hz in “bypass” mode, in contrast to traditional subwoofers, which are typically limited to 120 Hz. In other words, this is a driver that follows the signal with extreme precision. It therefore can actually play music and not just the low-end rumble and explosions of an action movie.
Easy to integrate

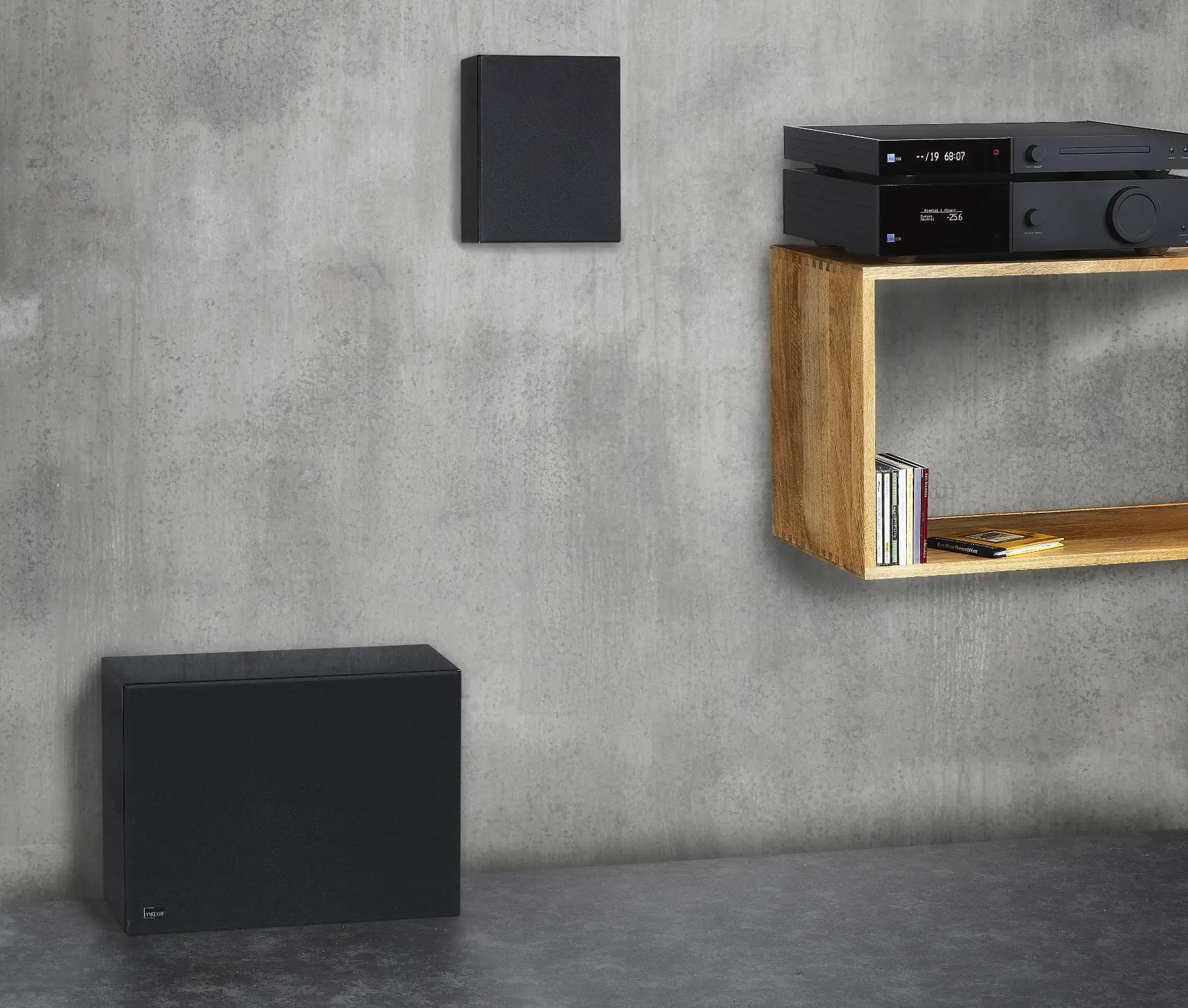

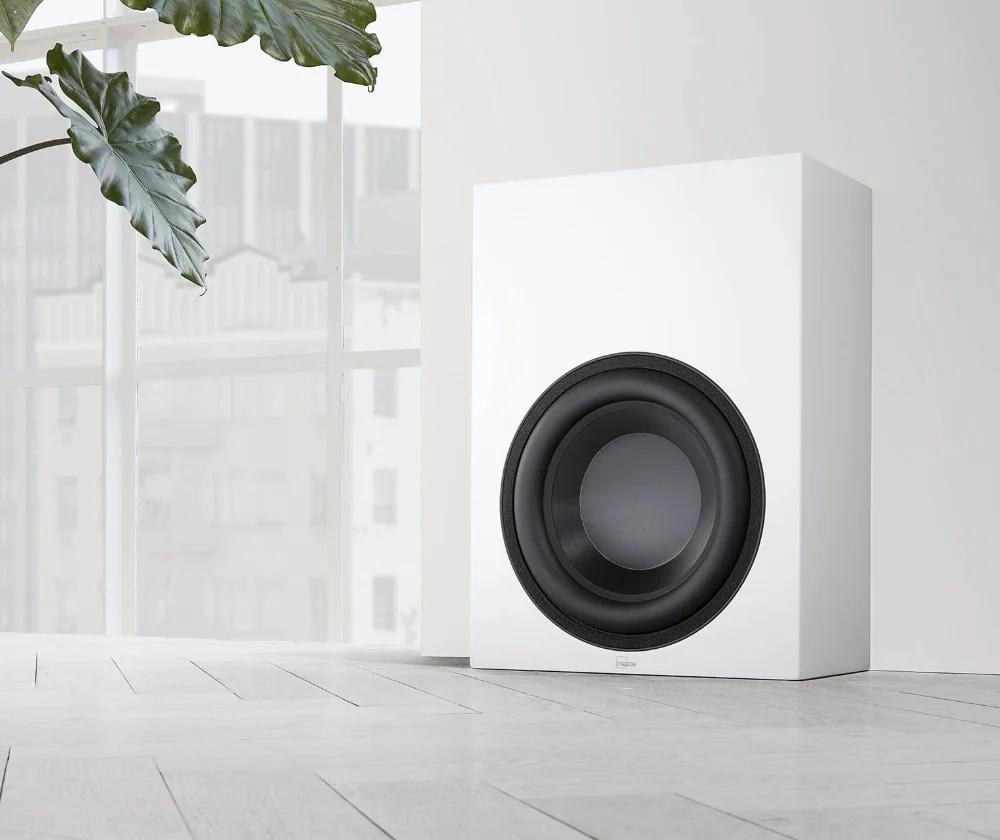

The BW-2 is designed with a focus on discretion. Available in high-gloss black or matte white – allowing for seamless integration in any contemporary interior. It can be positioned standing upright or on the side in order to fit into the available space. This also makes it the perfect match for any stereo or home cinema system.
Refined Class D power
The internal amplifier is a proprietary Class-D design based on Lyngdorf Audio's more than 15 years of experience in designing audiophile Class-D amplifiers. With an output of 400 watts, it can deliver ample power to control the driver even at extreme levels.

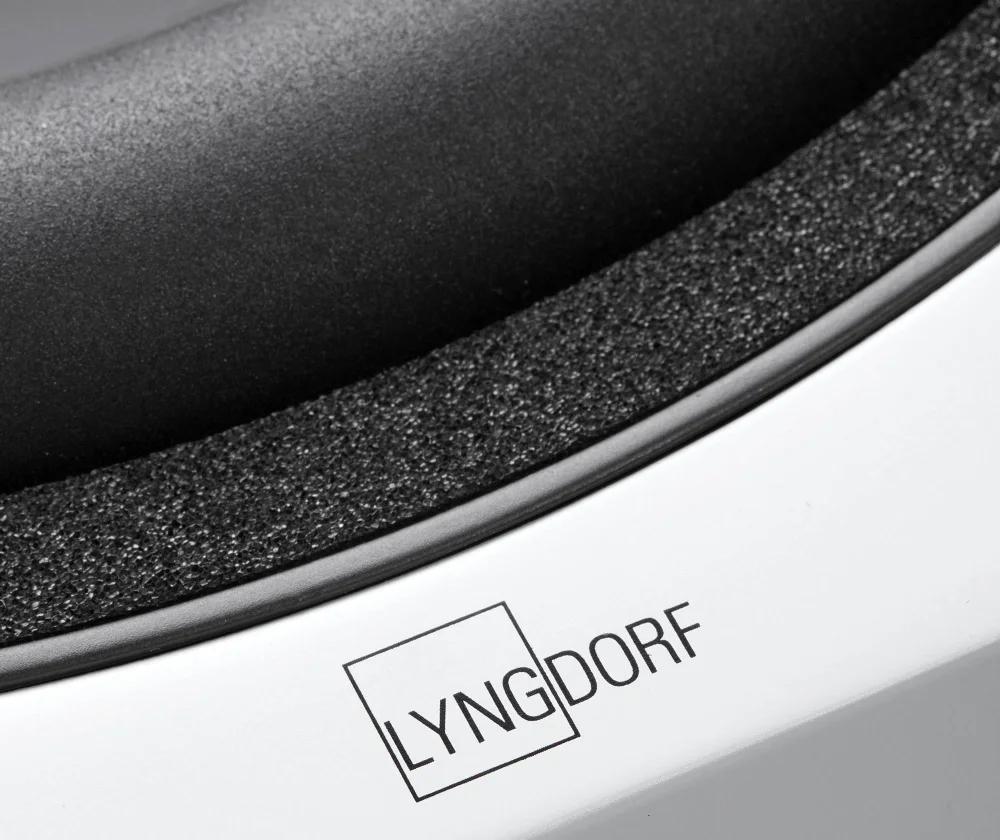

Long-throw driver
The custom-made 10” long-throw woofer driver features a massive magnet and voice coil to control the frequency response in the compact cabinet. This results in an extremely fast response and high efficiency.
To ensure perfect piston movement of the cone, it is manufactured in deep anodized aluminium. The open basket design allows ventilation below the spider – which, together with the vented pole piece, prevents over and under pressure from causing mechanical losses when the cone is moving.
More than a subwoofer
The BW-2 has two input modes. If you set it to “Line in”, it can be used with conventional amplifiers and processors and has a frequency range from 25 to 200 Hz. As with regular subwoofers, you have control over level, frequency range, and phase adjustment. If you have a Lyngdorf Audio amplifier, you can bypass the internal filters. Now the frequency range goes up to 800 Hz, and you can use the BW-2 as a boundary woofer to lift the performance of your system to a new level.
productPage.contactUsForBuying
The Lyngdorf loudspeakers MH-2, MH-3, FR-1 as well as the boundary woofers BW-2 and BW-3 are available with higher-quality fabric covers in five colours. The fabrics are made by Gabriel from Denmark. Gabriel is one of the leading fabric specialists since 1851 and creates the finest fabrics for furniture and interiors. The fabric has been specifically created for acoustic use and still provides a dense, high-quality woven cover. It is OEKO-TEX® STANDARD 100 certified. The fabric is attached to a new, very rigid frame, which avoids resonance and retains its shape for years to come.
While the Lyngdorf speakers and woofers in black cabinets are supplied with a black fabric cover, and speakers and woofer in white cabinets with a grey fabric cover, all fabric covers are available as an accessory. The covers are available in black, petrol blue, dusty green, grey, and red.
“With the MH-2 satellites and the active BW-2 subwoofer, Lyngdorf provides a clever alternative to conventional full-range speakers.“
“The Lyngdorf speaker ensemble sets up the drums right in front of us, they sound agile, dynamic and very spatial.“
Verdict:
Lite Magazine "Oberklasse / Top Class“
Sound: 94 of 100
Practicality: 97 of 100
Features: 90 of 100
Volker Frech, lite-magazin.de
“Unimaginable range of musicality and a sense of scale beyond its size.”
Audio Art Magazine
Description:
Active high bandwidth subwoofer
Power Handling:
400 W RMS, Class-D type
Frequency range:
25 - 200 Hz (using line in input) | 25 - 800 Hz (using bypass input)
Sensitivity:
2 V (input)
Maximum SPL:
106 dB RMS (THX method: 40-80 Hz)
Woofer:
10” long throw driver (±15 mm), Ø 50mm voice coil, deep anodized aluminum cone, 2.4 kg vented magnet
Inputs:
RCA / analog mono input
Enclosure:
Closed cabinet type, full MDF construction, volume: 14 liters
Placement:
On floor, standing or on the side
Dimensions (W x H x D):
325 х 440 х 172 mm
Weight:
14.4 kg
Finish:
Matte black with black fabric cover, matte white with grey fabric cover | Optional fabric covers: Black, grey, petrol blue, dusty green, red
