Home cinema loudspeaker system

Lyngdorf D-500 Center

The first Lyngdorf Audio installation speakers

The D speakers bring Lyngdorf Audio sound quality to the custom installation speaker market. After the successful introduction of Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the Lyngdorf D series expands the company’s range with in-wall and in-ceiling speakers for stereo and multichannel installations.

Full-range speaker design

The D-500 Center is designed as a full-range speaker, with two passive woofers complementing the midrange driver and tweeter. The tweeter placed directly above the midrange driver achieves the ideal sound radiation for a centre speaker and complement the D-500 placed left and right in the best way. This 2-way-design with passive woofers makes the D-500 Center easy to drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium-sized rooms, or as full range in-wall centre below a TV.

Pre-mounted loudspeaker enclosure

All D-500, D-60 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

productPage.quickRequest

productPage.contactUsForBuying

D stands for discreet

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

common.characteristics

Description:

2-way speaker with 2 passive woofers

Power Handling:

100 W (IEC)

Frequency range:

50 - 22000 Hz (-3dB)

Sensitivity:

88 dB (2.83V/1m)

Maximum SPL:

105 dB

Tweeter:

28 mm / 1,1” soft dome

Midrange/woofer:

175 mm, 38 mm voice coil, aluminum cone, vented magnet

Woofer:

2 x 175 mm, aluminum cones (passive)

Crossover point:

2500 Hz

Nominal impedance:

4 Ohm

Inputs:

Binding posts

Enclosure:

Closed compound cabinet

Placement:

In-wall

Dimensions (W x H x D):

646 х 388 х 109 mm

Weight:

11.5 kg

Finish:

Matte black, white grill

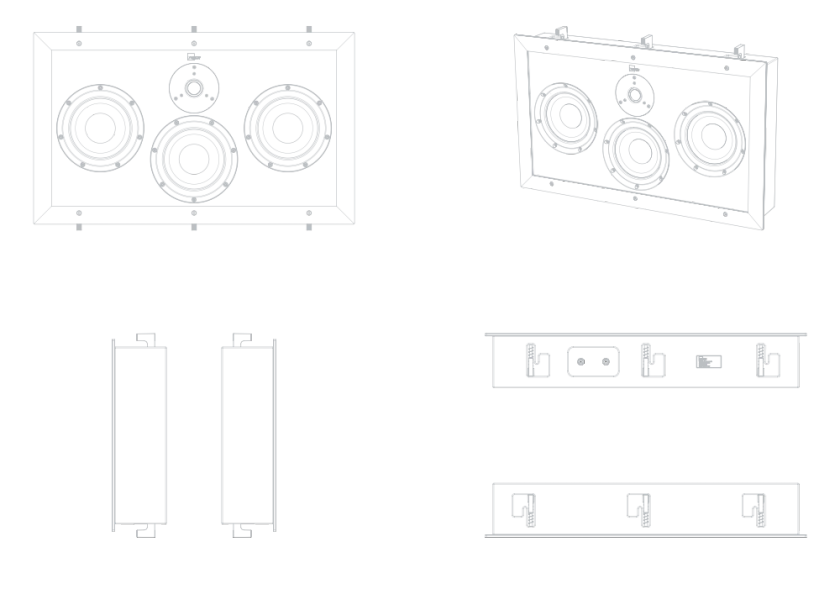

Schematic representation of the Lyngdorf D-500 Center loudspeaker in various projections

Brochure Installation manual Space saver installation guide Technical drawings

commonSections.contactSectionTitle

productPage.mainBrandTechnology

RoomPerfect™

RoomPerfect technology is one of the most significant patents in the history of audio. RoomPerfect adjusts the audio signal to the acoustics of the room, eliminates negative effects, and preserves sound clarity. It is the most intelligent acoustic correction system ever created, working perfectly in any room and with any audio system.

button.readMore

Fully Digital Amplification

In Steinway Lyngdorf digital amplifiers, signal processing is performed entirely in the digital domain, as this is the only way to realize the full potential of digital amplification. The speed, precision, and incredible dynamic range of this patented technology create stunningly clear and articulate sound with fantastic soundstage and dynamics.

button.readMore

Bass Management

The combination of RoomPerfect filters, flexible crossover filters, and fully digital signal processing forms the unique bass management architecture of Steinway Lyngdorf. Bass is reproduced with the correct level, timing, and directionality. Bass management in Steinway Lyngdorf systems delivers unprecedented natural timbre, clarity, and a fully integrated sound field.

button.readMore

Boundary woofers

Boundary woofers are a fundamental rethinking of the concept of bass reproduction. Steinway Lyngdorf boundary woofers have an exceptionally wide frequency range and are focused on dynamics and accuracy. In Steinway Lyngdorf systems that use boundary woofer technology, you will experience bass quality unlike anything you have ever heard from conventional subwoofers or loudspeakers.

button.readMore
