The series features an innovative line source approach incorporating floor-to-ceiling stackable speakers and boundary woofers. This allows sound to propagate over long distances, thus ensuring tonal consistency by reducing echoes, especially in large rooms. Line source technology means that every seat in the listening space has the same volume level and offers the same sound experience, from the front to the rear of the room.
productPage.contactUsForBuying

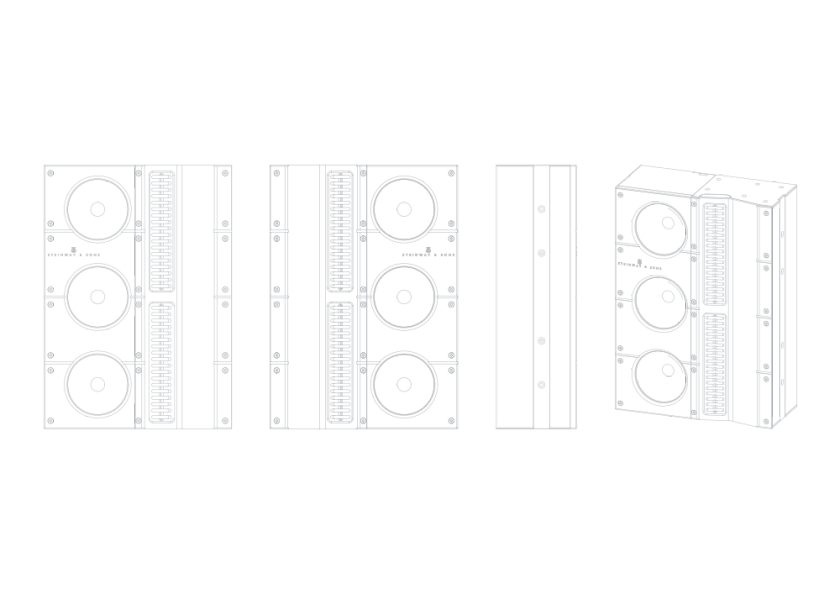

The LS l/r modules are stackable and a minimum of four modules must be used. Each module has 3” x 5 ½” midrange drivers and 2 x AMT tweeters. The right module is a mirror image of the LS left module. Both speakers feature "toed-in" tweeters, which allows the speaker to be installed straight in the wall without any need to toe-in the front left and right speakers.
The LS speaker is a very tall and slim loudspeaker, for a reason: This is a line source with several tweeters and midrange drivers arranged in a tall vertical line. This gives a very even and consistent sound radiation into the room, with less sound energy directed towards the ceiling and floor, and provides a high-efficiency design with similar high volume levels across the room. The result is a more similar sound experience on every seat.
Combining digital amplification technology with digital processing in Steinway & Sons stereo and surround sound processors and patented Steinway Link technology ensures a high-resolution, energy-efficient and lossless transmission path for the purest possible sound
OTHER CORE BRAND TECHNOLOGIESThe LS speakers use the company’s own Air Motion Transformer tweeters in a line array, achieving a completely clear, distortion-free performance even at the highest volume levels. The Air Motion Transformer comprises of an ultra-thin, folded Kapton diaphragm between extremely powerful neodymium magnets. Compared to conventional soft dome tweeters, this provides a much larger yet also much lighter diaphragm area to reproduce the highest frequencies effortlessly.
The LS speaker is modular. Depending on room size, room length, room width, seat layout, speaker position and screen size, up to six LS modules can be stacked to create the perfect home theatre, providing excellent dynamics and a uniform sound field across the room. Different versions ensure the best horizontal sound dispersion: Left and Right models with angled tweeters for beaming the sound inwards towards the listening area, and Center model for a wider and symmetrical sound beaming.
Description:
In-wall stackable line source speaker
Frequency range:
80 – 22000 Hz
Maximum SPL:
130 dB @ 1 m (equivalent to a conventional point source)
Amplification needed:
2 channels / A1 or A2 amplifiers, 2 x 400 watt
Enclosure:
Stackable line source speaker
Placement:
In-wall
Dimensions (W x H x D):
350 x 492 x 150 mm
Weight:
18 kg
Finish:
Matte black
Perfection can never be achieved by mixing products from different manufacturers off the shelf.
The strength of the chain is determined by its weakest element, and only a proprietary system approach ensures high performance in every area. An integrated system approach from Steinway Lyngdorf is the key to solutions for every room and every need.
